How to Build a Metal Frame Without a Welder
Welding is a skill that takes years to develop, requires expensive equipment, and isn't practical on a job site or in most home workshops. But that doesn't mean you're stuck with wood, plastic, or paying a fabricator every time you need a custom metal frame.
With weld-free tube connectors and standard 1" square steel tubing, anyone can build a strong, professional-grade metal frame in an afternoon — no torch, no grinder, no certification required.
Here's exactly how it's done.
What You'll Need
- 1" square metal tubing — standard mild steel, stainless, or aluminum (available at most metal suppliers, or call Rostek and we'll cut it to your exact dimensions)
- Build-A-Frame tube connectors — choose the configurations you need: 90° angles, T-intersections, 3-way corners, 4-way corners, cross intersections, 45° angle braces, or bolt-down feet
- A measuring tape and marker
- An Allen wrench or hex key (M8)
- Optional: self-drilling screws for extra fastening strength (included with connectors)
- An angle grinder equipped with a thin cut-off wheel, if you 1" metal tube is not already cut to size. Remember eye and ear protection!
Step 1: Plan Your Frame
Sketch your frame on paper before cutting anything. Note the overall dimensions and where each joint falls. Each connector replaces a weld point, so identify every intersection, corner, and termination in your design.
If you're building something structural — a workbench, equipment stand, or shelving frame — think about where lateral load will come from and whether 45° angle braces are needed for rigidity.
Step 2: Cut Your Tubing to Length
Cut each tube section to the length needed between connector bodies. Most hardware stores and steel suppliers will cut tubing for you. Rostek also supplies steel tubing cut to exact specifications — you can order your connectors and pre-cut steel together and have everything arrive ready to assemble.
If you're cutting yourself, a metal-cutting chop saw or angle grinder with a cutting disc works well. Deburr the cut ends lightly so they slide cleanly into the connectors.
Step 3: Assemble the Frame
Slide each tube end into its connector. The connectors are cast aluminum and sized to accept standard 1" square tubing with a snug fit.
Once the tube is seated, tighten the M8 grub screw using your hex key. For permanent or high-load applications, add a self-drilling screw through the side of the connector into the tubing for additional mechanical lock.
Work from one end of the frame to the other, squaring up each section as you go before fully tightening.
Step 4: Mount or Finish
If your frame needs to be floor-mounted or wall-mounted, use the bolt-down foot connector at the base. It accepts standard hardware and lets you permanently anchor the frame to any flat surface.
For a cleaner look, a quick pass with a wire brush or light sandpaper on the tube ends before assembly keeps things looking sharp. The cast aluminum connectors take paint well if you want a uniform finish.
What You Can Build
The Build-A-Frame system works across a wide range of applications:
- Trades: HVAC support frames, conduit brackets, electrical equipment stands, cable management structures
- Manufacturing & industrial: equipment enclosures, machine guards, conveyor supports, jig frames
- Farm & agriculture: livestock panel supports, irrigation frames, storage structures

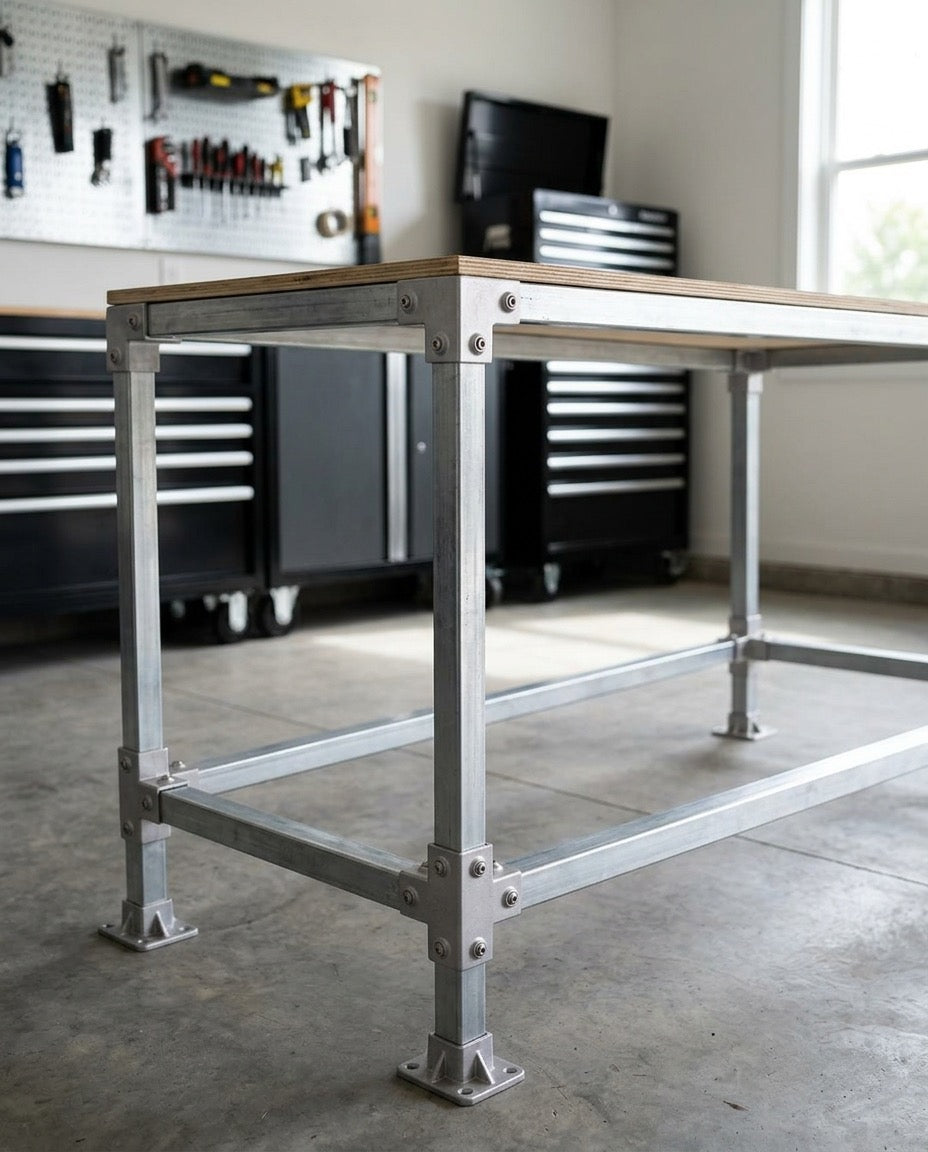

- Home & workshop: garage shelving, workbenches, rolling carts, storage frames, DIY desks
- Retail & display: product display stands, sign frames, fixture supports
The Rostek Advantage
Most connector suppliers sell connectors only — you still have to source and cut the steel yourself. Rostek is one of the few sources that can supply both: connectors in all 8 configurations, plus steel tubing cut to your exact measurements. Everything ships together so you can build immediately on arrival.
For B2B and bulk orders, call us at 888-249-8065 or email sales@rostek.us.
